DAA 550 Mini Case Feeder

Name: DAA 550 Mini Case Feeder
Brand: Double-Alpha Academy
SKU: 103442
Price: 139.00 EUR
Availability: InStock
Rating: 5 (47 reviews)

Manufacturer
Double-Alpha Academy

Key features

Configure

€139.00

Limited to €3,000 / Countries

€5.00 Reward points

Qty:

Save for Later

(47)

in Stock

Latest reviews

Craig ***

18 Oct 2024

I happened to come across this by chance and decided to give it a shot. Once I got it set up and adjusted, it worked very well. Assembly wasn't difficult, but it did entail partially disassembling parts of the press for installation. The upper drop assembly also required a little trimming of the...

Rating: (5 of 5 Stars!)

ERNEST ***

6 Jun 2024

I purchased two of these for my Dillon 550C presses and I had to modify the mount because of the lip on the 550C. I used a dremel tool which made it easy to make the slight modification. After the modification, the feeder was up and running fantastic! I highly recommend that you also purchase the...

Rating: (5 of 5 Stars!)

Zachary ***

9 Jan 2024

Works great! Viewing the video on setup made it easy to setup and mount to my press. Just need to take your time cycling the press and watching the process. Still faster and easier than hand feeding brass. I reload .45 Colt and 44 Mag and had to modify the .45 ACP orange tube by filing it out. I...

Rating: (5 of 5 Stars!)

Georg ***

23 Sep 2023

Nice extension for the dillon 55o press. The only 3 wishes I would have are:
1) there should be some kind of "spingy holdeng the cases back in the shell plate device" like the normal dillon has. Somtimes the cases bounce a little back from the shell plate an interfere with the calibration die....

Rating: (5 of 5 Stars!)

Marc ***

27 Jun 2023

Excellent product and work well. Had some issues with understanding how to install it using the video, but once I figured it out.. operations was smooth. Using 9mm at the time ... did first production run of a full set of tubes. Support was quick and outstanding. Should have done it years ago.

Rating: (5 of 5 Stars!)

Kevin ***

20 Jun 2023

I started using mine with 380 cartridges, which I still cannot get to work properly. I tried some of the suggestions made to me( tape), but it is still hit or miss. I cannot fully load the mini case feeder, because the shells get stuck and will not feed. if I load only two columns its works most...

Rating: (4 of 5 Stars!)

We Also Recommend

DAA 550 Mini Case Feeder

€139.00

Add to Cart

DAA Mini Case Feeder Loader Bowl

€22.95

Add to Cart

Tube Assembly Only 9/38/40 for Mini XL650 Case Feeder

DAA Tube Assembly for Mini case feeders

€55.00

Add to Cart

Important Note

MINI CASE FEEDER NOTE:

May not work with all Dillon Roller handles, as some seem to be more angled inwards towards the press.

Description:

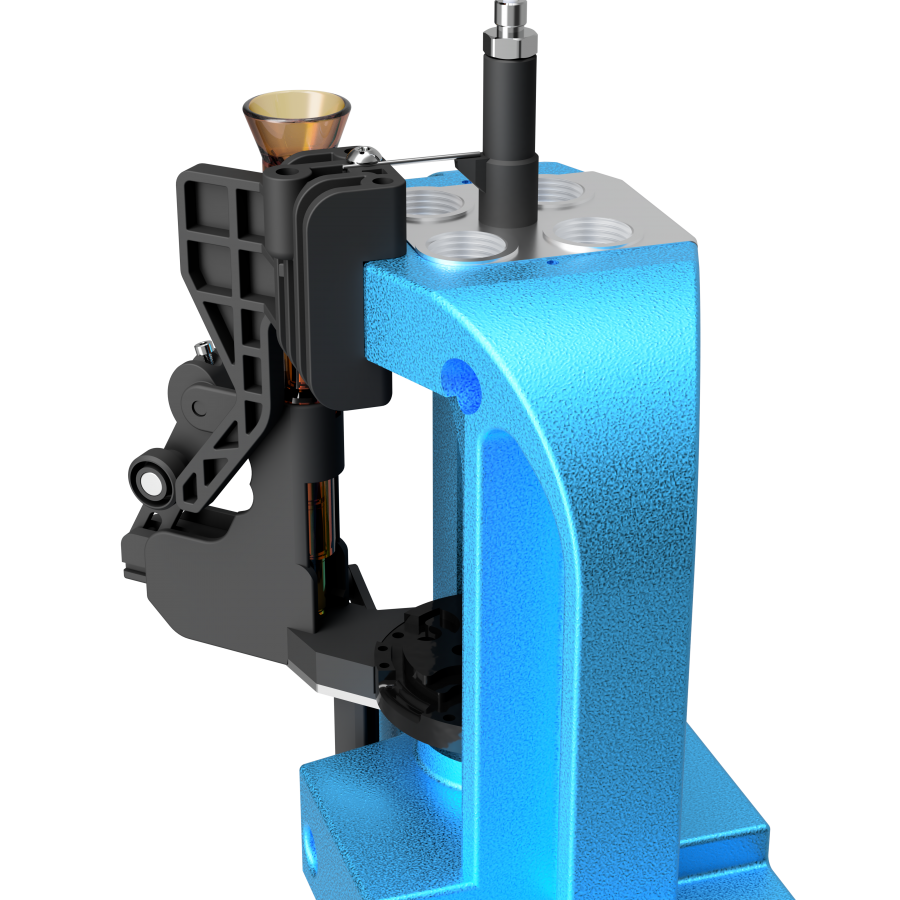

Make reloading even more fun with the DAA 550 Mini Case Feeder! While the Dillon 550 does not include a case feeder, this product offers a smart, low cost, solution. Although it doesn’t fully replace a standard case feeder, this upgrade significantly boosts efficiency by automating the case feeding process, saving you from the repetitive task of manually inserting each case. You can leave your right hand on the handle, and speed things up considerably!
It’s a definite game-changer for Dillon 550 users looking to speed up and simplify their reloading process!

Key Features:

Compatibility: Specifically designed for the Dillon 550 press.
Increased Efficiency: Automates case feeding to streamline reloading operations.
Easy Installation: Simple setup process for quick integration.
High Capacity: Holds up to 100 cases, reducing the need for frequent refills.

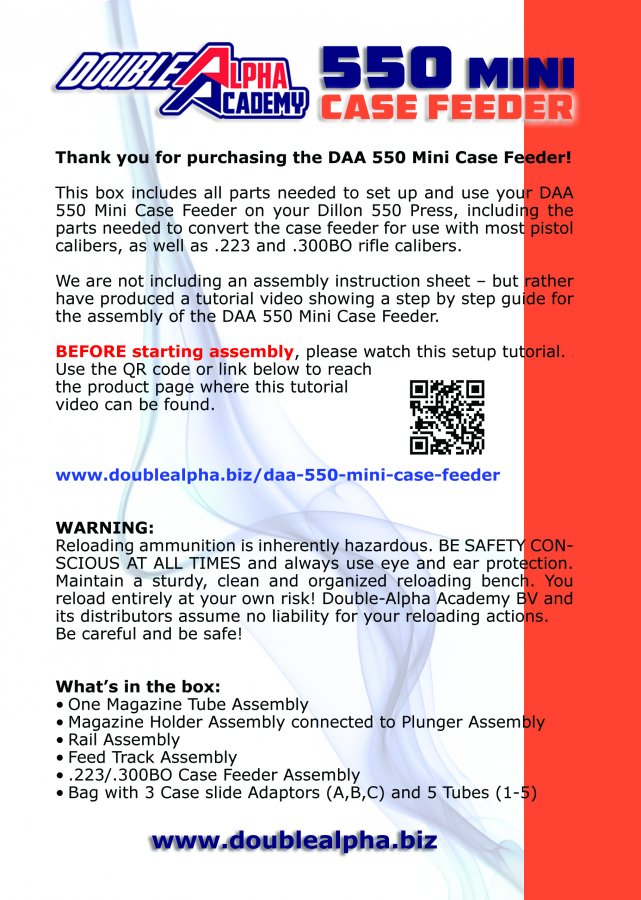

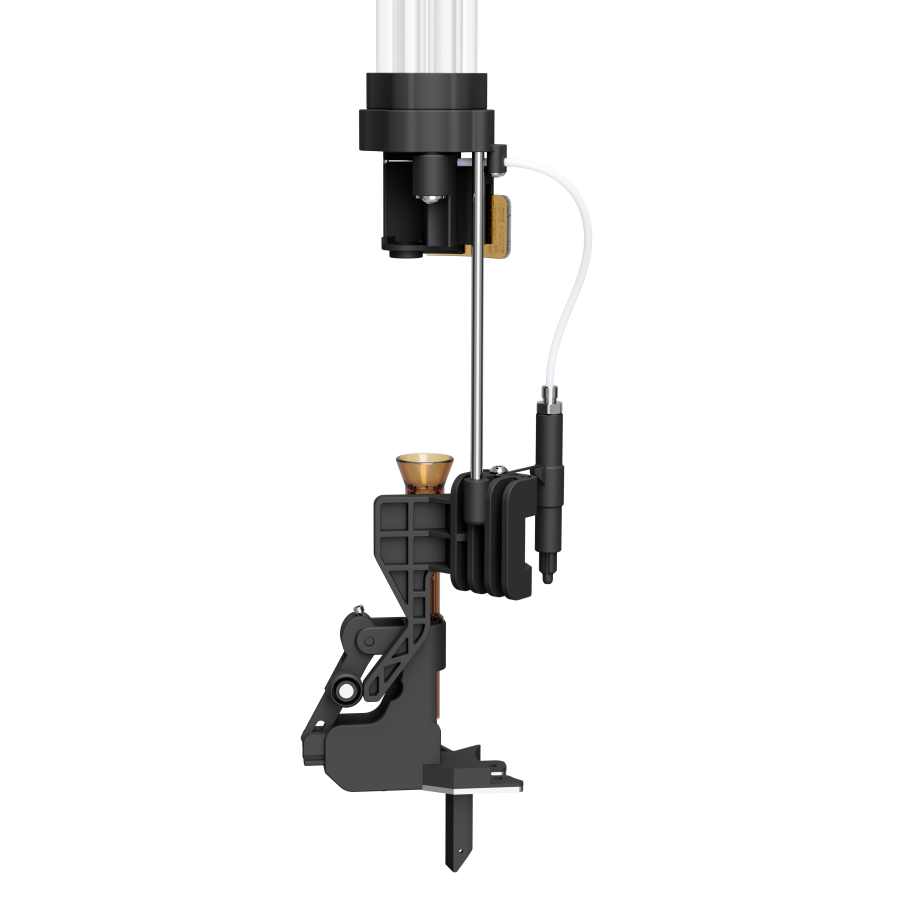

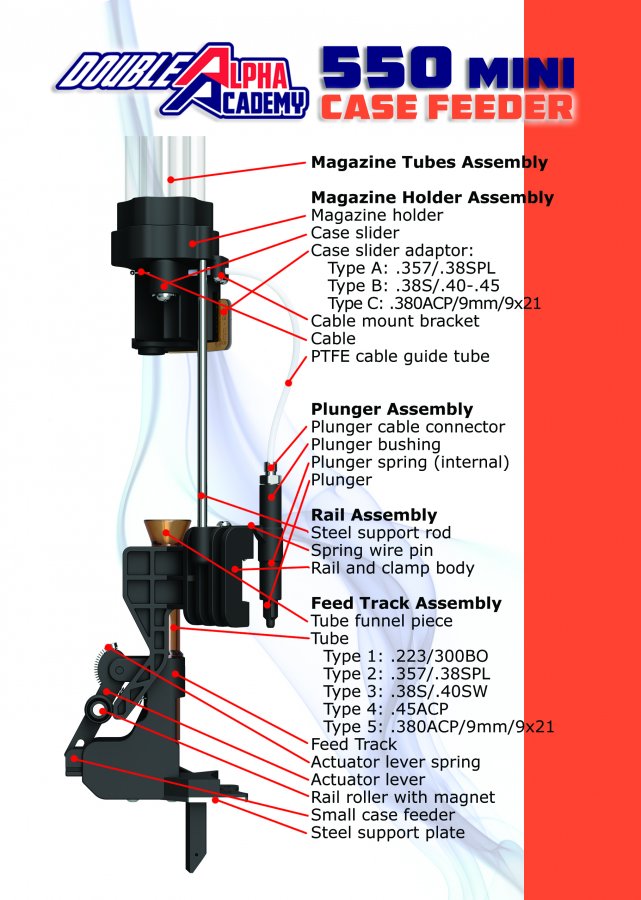

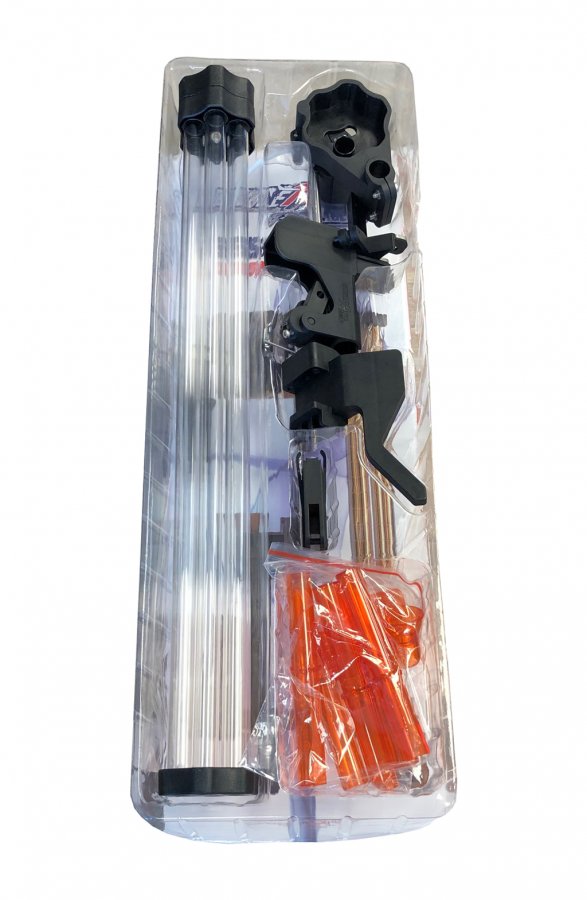

Your DAA 550 Mini Case Feeder Includes:

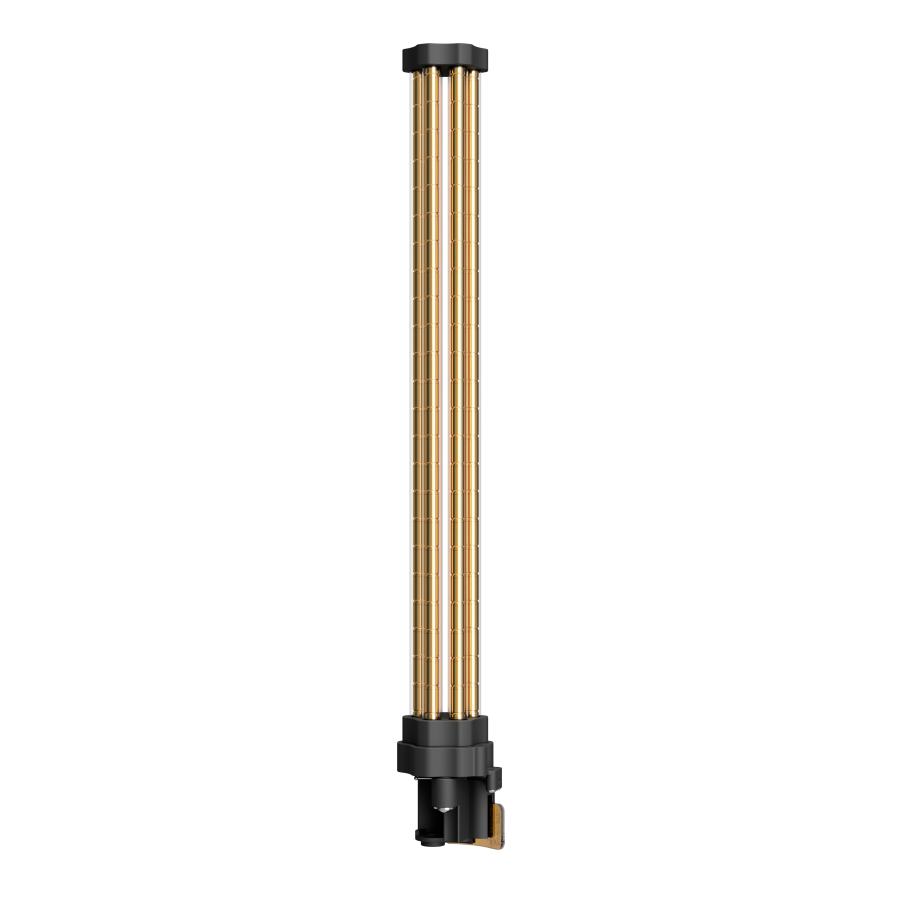

One 6-tube magazine assembly

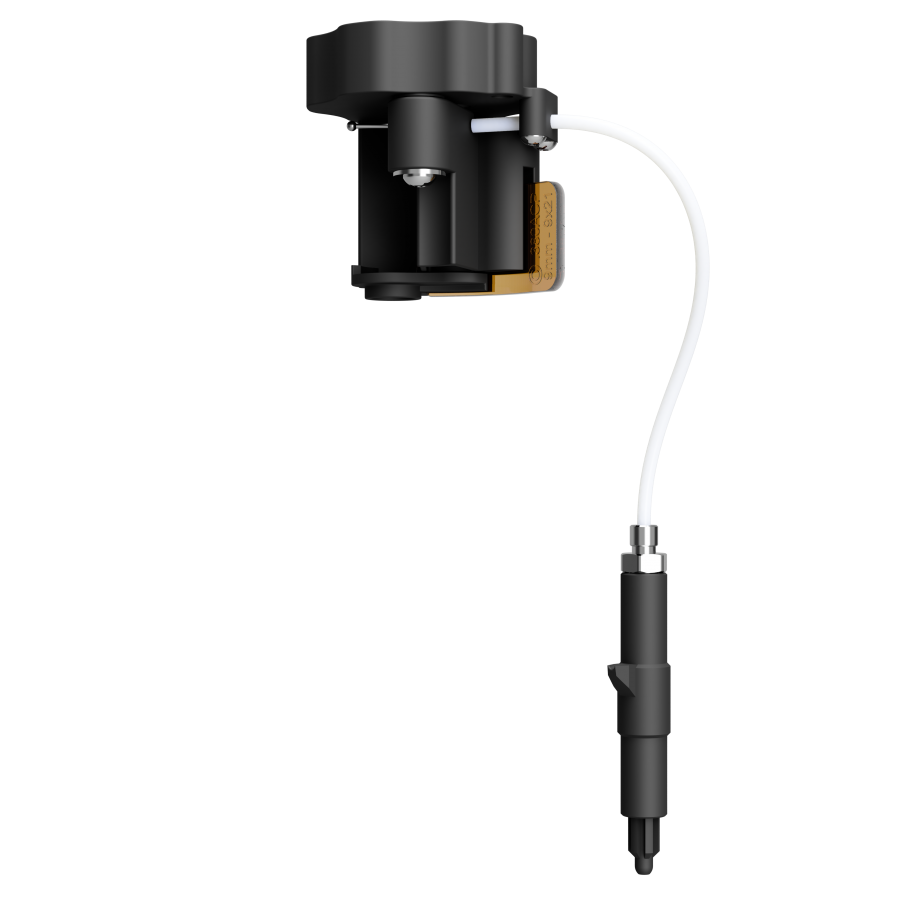

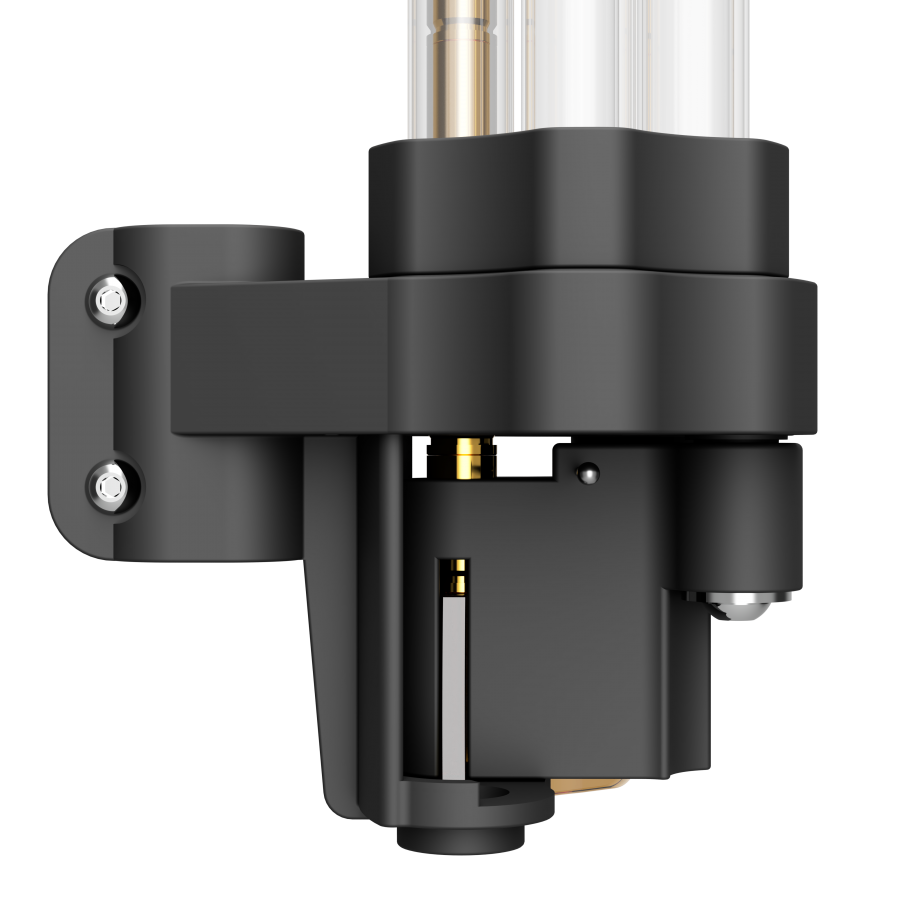

Magazine holder assembly
Plunger assembly
Rail assembly
Feed track assembly
5 feed tubes
3 case slider adaptors
Large (rifle) case feeder

Supported Calibers:

.380ACP, 9mm, 9x21, 9x23, .38S, .40SW, .45ACP, .38SPL, .357MAG, .223, .300BO*

*Note: To use with 300 Black Out, you need to modify the Type A case slider adaptor, making it shorter by 1.5-2.0mm. You can do so using a file, Dremmel, or belt sander. After this modification the Type A spacer can still be used without issue for the .357, but it will no longer function with the 38SPL. If you require both 300BO and .38SPL calibers – contact us for a spare Type A spacer.

Additional Information:

Optional Mini Case Feeder Bowl available for speeding up the tube filling process.
Watch setup and caliber conversion video tutorials before use:
