Complete Unit - DAA Toolhead LED Lighting System - Dillon 1050/1100/2000

Double-Alpha Academy

Key features

DAA Toolhead LED Lighting PCB - Dillon 1050/1100
1 x DAA Toolhead LED Lighting PCB - Dillon 1050/1100
 Item in Stock | Usually dispatched within 24 hours
1 item(s)
DAA Toolhead LED Lighting Controller Unit
1 x DAA Toolhead LED Lighting Controller Unit
 Item in Stock | Usually dispatched within 24 hours
1 item(s)
Total Price:
 Item in Stock | Usually dispatched within 24 hours

Latest reviews

Mark ***
7 Jan 2024
Great lighting system, very bright. I bought one for each toolhead.

My only complaint is no bracket to hold controller. Had to make my own.
Rating: (5 of 5 Stars!)
David ***
1 Jan 2024
Just what I wanted for Christmas!!!!! Others that I looked at cost almost triple for the light setup I wanted. This gave me the ability to remove 2 of the 5 lights I was using to ensure I could see everything. I have an LED light for each of the 4 calibers I load. Two of them are already...
Rating: (5 of 5 Stars!)
Stefan ***
14 Jul 2022
I always have a lamp with a clamp attached to my press to check if there is powder in case or if there is powder residue somewhere on my press. The DAA Toolhead LED lighting system is a great addition and easy to use. It's not something you necessarily need to load effectively, but it makes...
Rating: (5 of 5 Stars!)
Erol ***
27 Jul 2022
Super bright light and adjustable! Perfect! Fair pricing!
Rating: (5 of 5 Stars!)
Frank ***
29 Jul 2022
This is a product, where i've waiting for ;-)
The time of my spotlight is over and now i can see every (!) station.
Rating: (5 of 5 Stars!)
steve ***
16 Sep 2022
This is a nice addition; I really like that I can put one on every head and use the same power supply.
Rating: (5 of 5 Stars!)
Important Note
Light Note:
1. It is very important that you thoroughly degrease the underside of your toolhead before attempting to glue the board into place. This is important for used as well as new tool heads. If you fail to do so, the adhesive won’t hold and the board will come loose. Watch the video for instructions.

2. If you modify your Dillon press with aftermarket parts, the DAA LED light board my no longer fit.

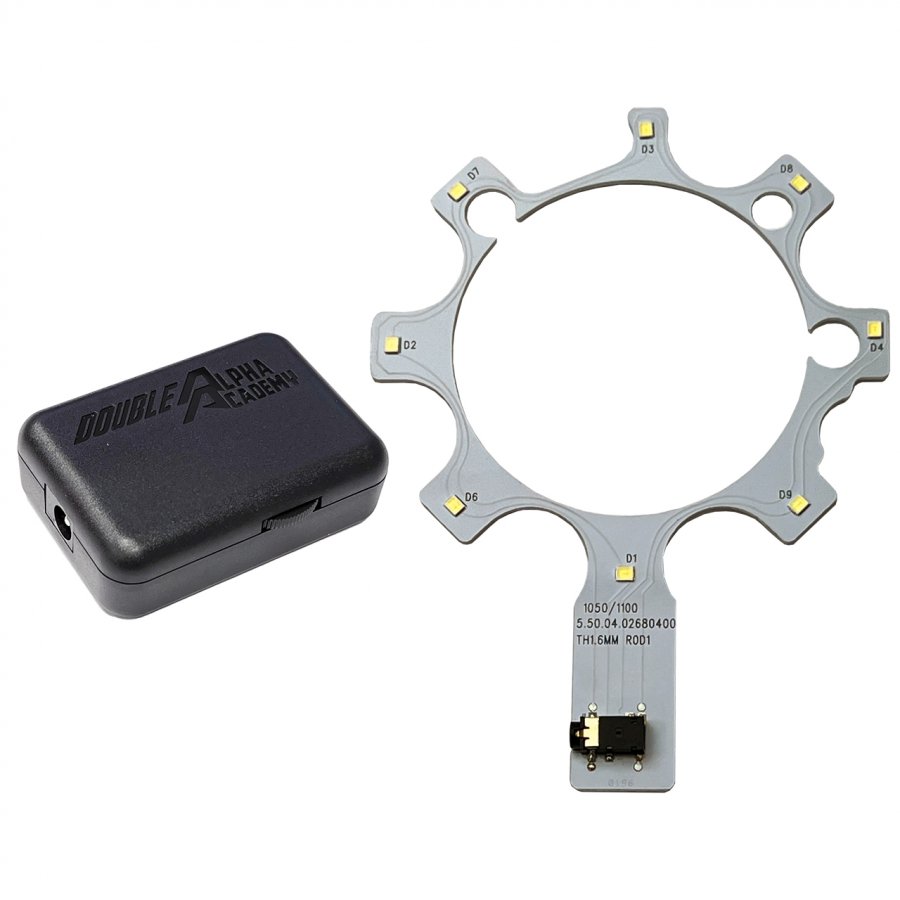

This is a complete DAA Toolhead LED Lighting System for Dillon 1050/1100/2000.

Enjoy a perfectly lit shell-plate as you reload on your Dillon 1050/1100 with our DAA Toolhead LED Lights. Make your reloading easier and less strenuous on the eyes, while avoiding mistakes in your reloading process.

(Can also be used on the Dillon CP2000 toolhead, so long as station 4 if left free.)


The DAA ToolHead LED lighting PCB is made of a high quality Aluminum PCB board, making it stronger and stiffer than normal plastic PCBs. It’s white color increases light reflection making the board even more effective.

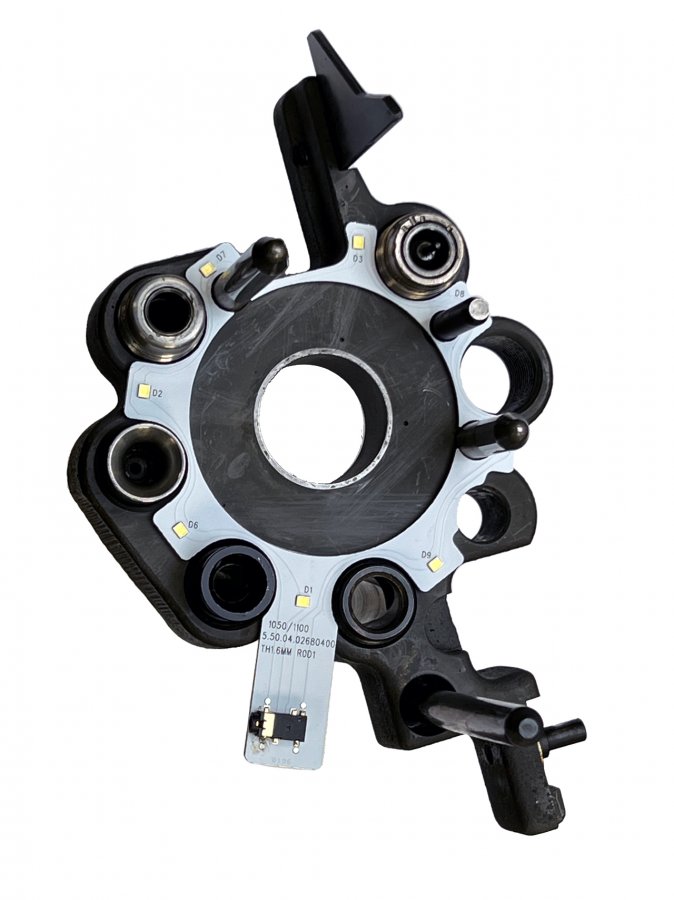

The ToolHead LED lights ship pre-fitted with a precisely cut, high-quality double-sided adhesive tape, enabling you to firmly and permanently attach the board to the underside of your toolhead.

We designed our tool head PCBs to carry only the LED lights and connector plug, moving all other electronics from LED board to the controller unit. This allows us to offer the boards at a cheaper price, saving you big when you need multiple boards for your multiple toolheads. And since the same controller can power all boards – only one controller is needed, even if you use more than one model of reloading machine.

The 1050/1100 model PCB has 8 bright LED lights. All type boards can be powered by our custom built controller unit, which identifies the board type it is plugged into and then drives it correctly supplying it voltage and current to support its number of LEDs. You can only use these LED boards with a DAA controller unit and cable!

The controller unit includes a Dimmer feature, so you adjust the light to be perfect for you.

Controller Unit:

The DAA ToolHead LED Lighting Controller unit will power any of the DAA LED toolhead lights, be it the small 550 board with 4 LEDs  or all the way up to the largest Mark7 board with its 10 LEDs. The smart electronics identifies the board and powers it correctly in every case.

The compact, custom made controller and housing unit includes a roller type ON/OFF switch which also provides a Dimmer feature enabling you to set the light just to your preference.

The controller unit includes:

  • Controller unit with ON/OFF/DIMMER roller switch
  • A short 30cm cable to connect the controller to the board.
  • A Velcro double-side tab to glue to controller to your press.
  • A 110/220 power supply with 2M lead, and two sets of prongs (US and EU)
