DAA Toolhead LED Lighting PCB - Dillon 650/750

Double-Alpha Academy

Key features

Configure
17.95
€0.50 Reward points
(15)
 Item in Stock | Usually dispatched within 24 hours

Latest reviews

Ivan ***
Thursday 26 October, 2023
Perfect lighting The Sun inside the Dillon!
Rating: (5 of 5 Stars!)
John Foley ***
Monday 29 May, 2023
You need one of these per tool head. The adhesive sticks it semi permanently so you can't swap it. Must be centered near perfectly in order to use a tool head stand so be precise when you place it. The light it provides is excellent ????.
Rating: (5 of 5 Stars!)
Do Vale Ribeiro José ***
Wednesday 12 April, 2023
Produit de bonne qualité.
Envoi rapide et très bien emballée je recommande
Rating: (4 of 5 Stars!)
Do Vale Ribeiro José ***
Wednesday 12 April, 2023
Produit de bonne qualité.
Envoi rapide et très bien emballée je recommande
Rating: (4 of 5 Stars!)
Johan ***
Saturday 11 March, 2023
Just broke mine by accidentally thouching the jack connector. One of the connectoions of the jack chassis on the PCB broke of ! To my opinion that's a little bit of a weak point.

But otherwise ... great LED light and also fair priced !!! And must say the design was well thought out !!

Cardoen...
Rating: (4 of 5 Stars!)
Stefan ***
Thursday 14 July, 2022
I always have a lamp with a clamp attached to my press to check if there is powder in case or if there is powder residue somewhere on my press. The DAA Toolhead LED lighting system is a great addition and easy to use. It's not something you necessarily need to load effectively, but it makes...
Rating: (5 of 5 Stars!)
Important Note
Light Note:
1. It is very important that you thoroughly degrease the underside of your toolhead before attempting to glue the board into place. This is important for used as well as new tool heads. If you fail to do so, the adhesive won’t hold and the board will come loose. Watch the video for instructions.

2. If you modify your Dillon press with aftermarket parts, the DAA LED light board my no longer fit.

Description:

Enjoy a perfectly lit shell-plate as you reload on your Dillon XL650/750 with our DAA Toolhead LED Lights. Make your reloading easier and less strenuous on the eyes, while avoiding mistakes in your reloading process.

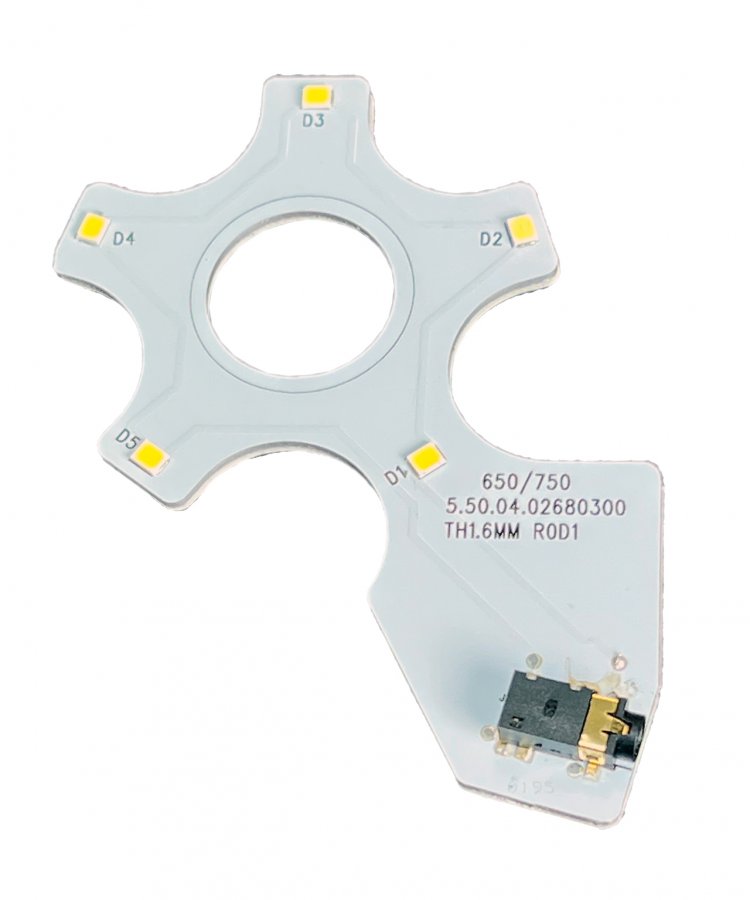

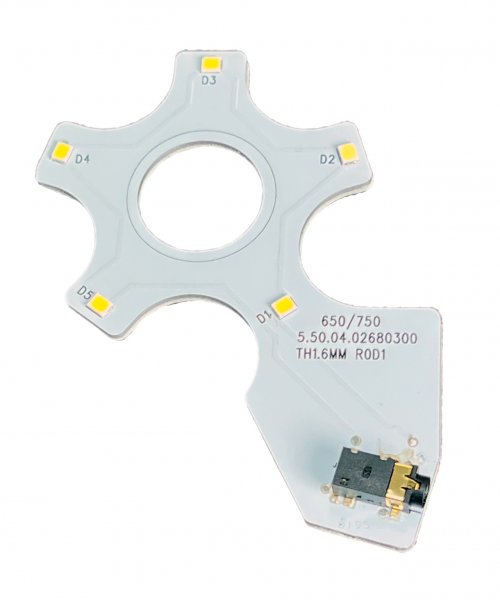

The DAA ToolHead LED lighting PCB is made of a high quality Aluminum PCB board, making it stronger and stiffer than normal plastic PCBs. It’s white color increases light reflection making the board even more effective.

The ToolHead LED lights ship pre-fitted with a precisely cut, high-quality double-sided adhesive tape, enabling you to firmly and permanently attach the board to the underside of your toolhead.

We designed our tool head PCBs to carry only the LED lights and connector plug, moving all other electronics from LED board to the controller unit. This allows us to offer the boards at a cheaper price, saving you big when you need multiple boards for your multiple toolheads. And since the same controller can power all boards – only one controller is needed, even if you use more than one model of reloading machine.

The XL650/750 model PCB has 5 bright LED lights. All type boards can be powered by our custom built controller unit, which identifies the board type it is plugged into and then drives it correctly supplying it voltage and current to support its number of LEDs. You can only use these LED boards with a DAA controller unit and cable!

The controller unit includes a Dimmer feature, so you adjust the light to be perfect for you.

The boards are sold separately. Order your controller unit HERE. Or select a combo offer if you need multiple toolhead boards
