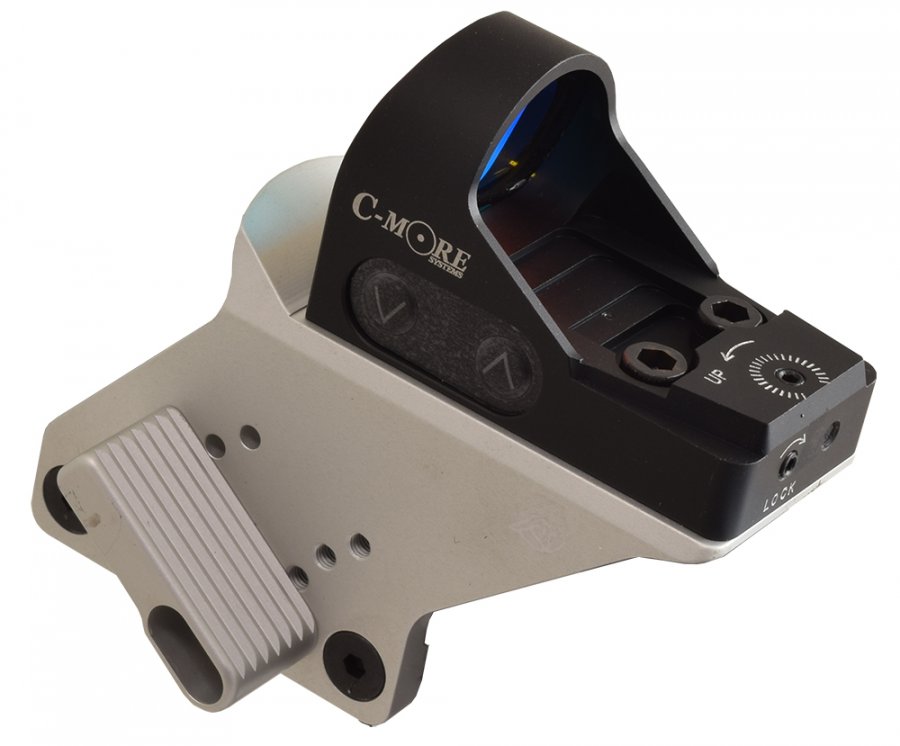

Save 25Euro/25USD when purchasing this bundle consisting of:
1x C-More RTS2 Scope
1x DAA RTS2 Scope Mount
C-More RTS2B-V5
The updated C-MORE RTS2B-V5 red dot reflex sight has taken micro red dot scopes to the next level. Like other C-More competition sights, the all new RTS2B-V5 head up display provides an unobstructed sight picture in which the red dot hovers on the sight line, illuminating the point of impact on the target, allows you the fastest target acquisition possible, without straining your eyes. It also uses a beam-splitter lens made of hard coated glass for maximum scratch resistance and light transmission. The parallax free design enables targets to be acquired without the need to center the dot in the lens.
The RTS2B-V5 uses a Motion Sensing System (MSS) with auto shut off to conserve the CR2032 lithium battery, which can be replaced without dismounting the sight. This eliminates the trouble of re-zeroing after replacing the battery. And the battery compartment is O-ring sealed for waterproofing. A 10 position manually operated push button switch provides precision intensity adjustment, previous intensity return, and auto off after 8 hours of inactivity.
The C-MORE RTS2B-V5 reflex sight is made of aviation alloy housing. Updated hardened electronics within are designed to handle the hottest loads from large caliber firearms. The RTS2 provides 1 moa click adjustment for windage and elevation resulting in supreme accuracy. A positive locking screw for both windage and elevation lock the adjustment screws in position.
Note: The RTS2B-V5 can be attached to a Picatinny or Weaver Rail out of the box, or with the Rail Mount removed to mount the sight directly.
The RTS2B-V5 Package comes with:
- 1 x RTS2B-V5 red dot reflex sight
- 1 x RTS2MT200 Rail Mount (Attached)
- 1 x Protective Sight Cover
- 1 x CR2032 Battery (Installed)
- 1 x Adjustment Wrench
- 2 x Rail Mount Wrenches
- 2 x Direct Mounting Screws with Wrench
- 1 x Instruction Manual
DAA RTS2 Scope Mount
The DAA RTS2 2011 mount is machined from solid aircraft grade aluminum to ensure long lasting durability and precision.
The mount is designed to allow just 2mm of clearance above the top of a flattened 2011 slide, so may be a tight fit if no material has been removed from the top of your slide.
The scope mounting surface includes locating pins which have been machined directly from the solid mount material to ensure precision and a perfect fit to your C-More RTS2 scope.
A compact yet functional blast shield is incorporated in the mount, to help deflect muzzle blast way from the lens of your sight.
A serrated, wide thumb paddle is included, and several mounting holes are available to allow you to position the thumb rest to best suite your preference. More than 20 height and angle combinations are possible. The thumb rest is attached using a steel pin and an M3 socket screw (included).
Or, should you not with to use a thumb rest you can certainly leave it off the mount.
The mount is designed so the scope is aligned with the center of your slide and as low down to the slide as possible. It is designed to allow a forward-positioned Slide-Racker (as supplied with the STI DVC Open guns) to fit with the mount in place, allowing the Racker to be used on the left side of the gun too, as most right-handed shooters prefer.
The mounting hole pattern is the Standard C-More pattern, with a 4th hole added between the forward and middle holes.
Due to the wide variety of mounting screws and threads in use – mounting screws are not included with this mount. Use screws that fit the threads your frame already has, or as recommended by your Gunsmith when drilling and tapping your frame. We recommend the use of M4 Torx screws.
The height of the mount, from the center of the mounting holes to the underside of the scope platform is 29.8mm.
