The 2018 Hanger Assembly for the Mr.Bulletfeeder by DAA ships as standard with all new units leaving DAA as of Jan 2018.
Should you wish to upgrade your current hanger assembly (the one with the round Delrin pucks and aluminum rods) you can do so by purchasing this new hanger separately. It is reverse-compatible with all previous Mr.Bulletfeeder by DAA units.

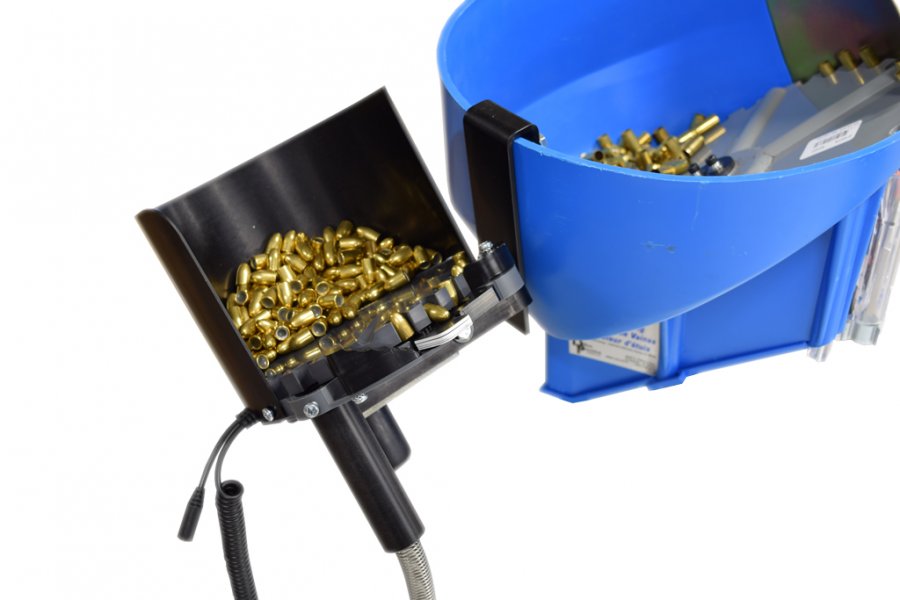

The new hanger is a simplified design, which makes assembly and adjustments to the tilt angle easier and faster to make. The Horizontal aluminum bracket clamps directly onto the motor gear box, allowing for easy assembly on either the left or the right side of the collator, to accommodate your specific position mounting needs.
The vertical piece hangs over the side of your case feeder, and connects to the horizontal bracket by means of a large M8 bolt, which can be loosened and rotated for tilt adjustments.
Sturdy attachment to the collator, a simplified design with fewer parts, thick aluminum profiles and way fewer screws make this hanger simpler and easier to setup and adjust.

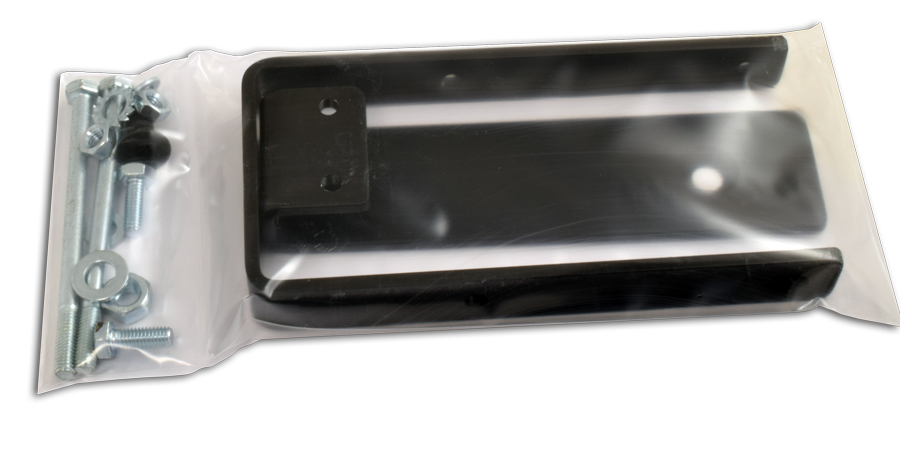

Note: Machine NOT included - only Hanger.
Mr.Bulletfeeder 2018 Hanger Assembly
