XL650 Mini Case Feeder - Multi Caliber by DAA

Double-Alpha Academy

Key features

Configure
$56.95
Save for Later
$1.50 Reward points
(49)
 Item in Stock | Usually dispatched within 24 hours

Latest reviews

Bradley ***
Saturday 30 March, 2024
Works well, I was a little frustrated with having to drum sand to fit the Dillon Case adapter. Takes some getting used to vs. single tube, but works well unless you let a case get in upside down, then a bit messy trying to shut off, pull off the machine and straighten out. Double and triple check...
Rating: (4 of 5 Stars!)
Ronald ***
Wednesday 20 March, 2024
I now have 2 of them because I normally load 300 rounds of 9mm per session. This allows me to load two case feeders and I'm set. If I only have 100 rounds to load - which is the same number of rounds as most sleeves of primers - I insert 2 .45 ACP hulls in two of the tubes so I can only put 100...
Rating: (5 of 5 Stars!)
Paul ***
Wednesday 13 March, 2024
Works flawlessly. I had to do quite a bit of sanding to get the parts to fit over the Dillon case adapter, but I appreciate that it is such a tight fit now.
Rating: (5 of 5 Stars!)
Phil ***
Tuesday 09 January, 2024
Purchased mine in April, just got around to using it last month. It is a great accessory and I really like it. Simple to use, fills quick, and lets me have an extended load session without high dollar automated feeders.

Like another recent reviewer I also had to sand parts quite a bit in order...
Rating: (4 of 5 Stars!)
Juha-Matti ***
Sunday 03 December, 2023
Very good and useful addition to my XL650. Speeds up reloading process considerably. Well made of adequate materials, good fit on the unit. Some light sanding was required for fitting the Dillon case feeder adapter. If you need to do that, go lightly! It's very little that needs to be sanded.
Rating: (5 of 5 Stars!)
Peter ***
Wednesday 27 September, 2023
I like it. It works great. There room for improvement. It needs more support. The ring It sits in broke on me. I would make a bracket to to tie it to where the case feed bracket goes. The case feeder for 550 is more secure and the 650 one needs some more support
Rating: (5 of 5 Stars!)

Description:

The Dillon XL650 and the Dillon XL750 are among the very best progressive reloading presses and one of the most popular on the market today.

It’s optional motorized case feeder is an excellent accessory, and highly recommended for those who can afford it. But it does add a substantial cost to the price of the XL650/750.

Many customers choose to start reloading on their XL650/750 without the optional case feeder, and for them the new DAA Mini Case feeder will be a great addition to their press!

In a few short minutes, perhaps while watching your favorite TV show, you can pre-hand-load the 6 tubes of the magazine assembly which will hold a combined 150 pcs of 9mm brass (about 130 of .40, or 120 of 38S).

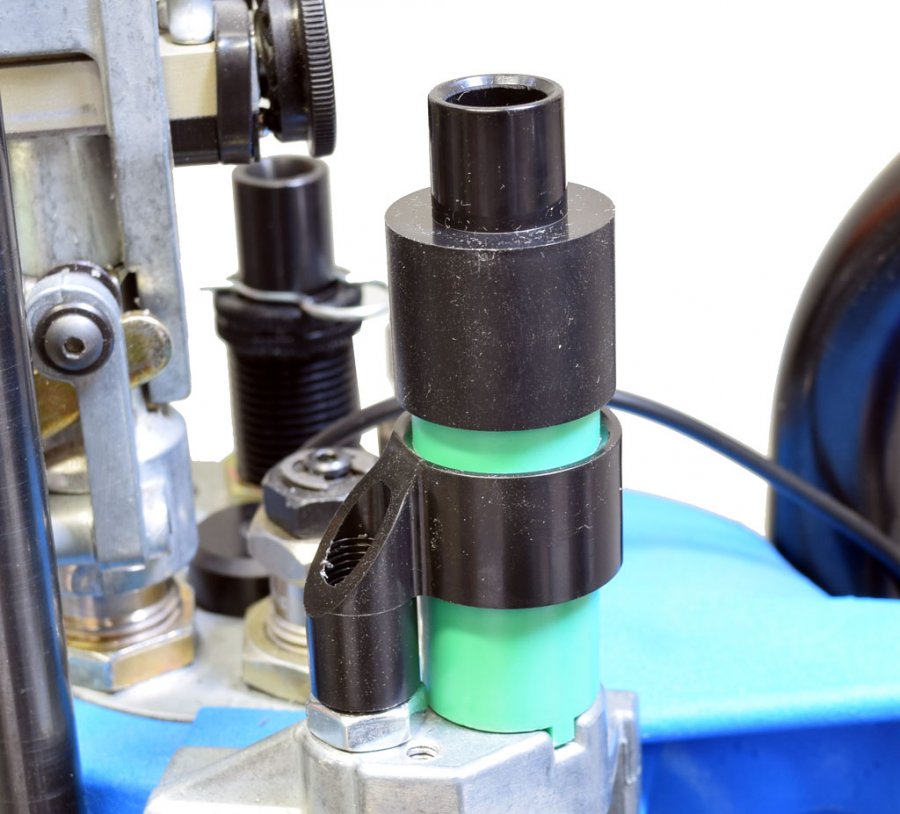

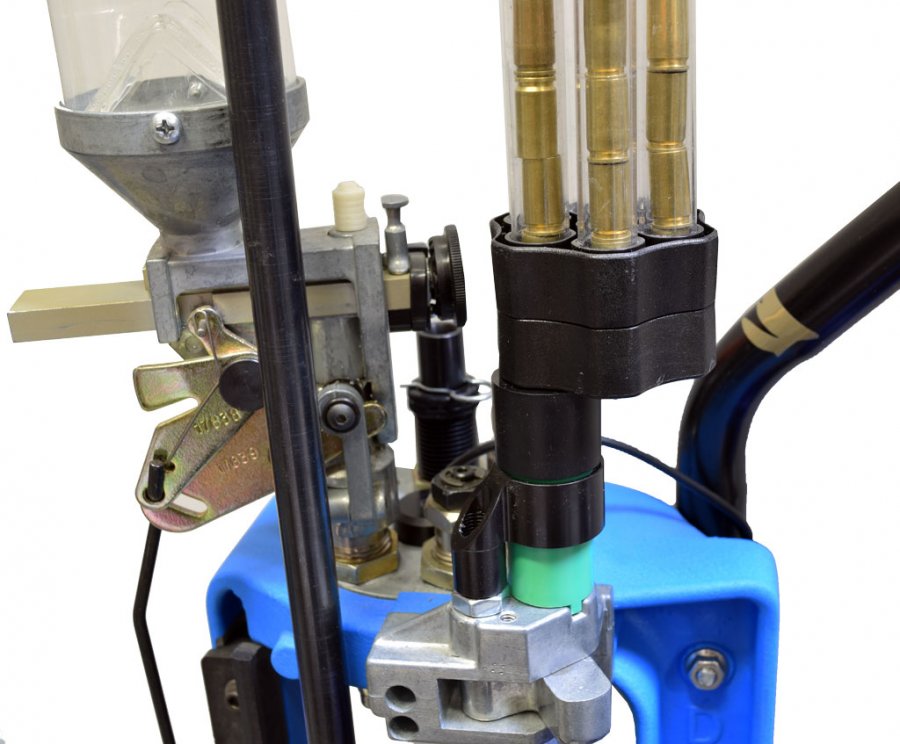

Using the included DAA Adaptor-Set parts, you simply seat the Magazine atop your XL650/750 using your Casefeed Adaptor, click the first tube into place – and you are ready to go. Each time a tube empties out, click the next one into position and continue reloading.

The DAA Mini Multi-Cal XL650 Case Feeder includes One 6-tube magazine assembly, and one Multi-Cal Adaptor-Set. Since the new design uses your original caliber specific Casefeed Adaptor, you can now use your DAA Mini Multi-Cal XL650/750 Case Feeder to feed brass in any caliber.

It is ONE product, which can be used to handle: 9mm, 38S, 38SPL, 357, 0.40, 10mm, .45, .44, 223 and more.

Additional Magazine Assemblies can be purchased separately should you wish to prepare more than 150 pcs of brass before starting to reload.

Please note:

  • The Multi-Cal Adaptor-Set is designed to fit snugly onto the Dillon Casefeed Adaptor tubes. If too tight, it may be difficult to remove to clear jams. If too loose, the assembly may wobble or cant a little. There is a slight variance between the various Dillon Casefeed Adaptor tubes, so some light fitting may be needed for a fit perfect to your needs. You can use a file, sandpaper or dremmel to slightly increase the inner dimension of the Support-Ring part.
  • When filling the tubes, rotate the base of the assembly so that it is positioned between tubes- that way none of the columns line up with the hole in the bottom – and the brass won’t fall out prematurely.
