Mr.BulletFeeder Gen 1/2 Pre-Set Nose-Guide

Double-Alpha Academy
Configure
$16.95
$0.50 Reward points
Save for Later
(15)
 Item in Stock | Usually dispatched within 24 hours

Latest reviews

Richard ***
26 Jul 2024
The preset nose guide is a must have for each caliber and bullet type used with Mr Bullet feeder. It reduces setup time and ensures the bullets drop “nose up” for quick and efficient reloading. I recommending buying the 3 pack so you have extra on hand when / if you have a different bullet type.
Rating: (5 of 5 Stars!)
Thomas Gottemoller ***
22 Mar 2024
Have Gen 1 Mr Bulletfeeder and this little tool was so easy to set up and so far, it has been flawless in delivering 9mm HBRN 115 gn. It is much easier to set up than the old shims and setting the ledge with the slot and screw.
Rating: (5 of 5 Stars!)
Mark ***
31 Jan 2024
Haven't used the one I purchased for my 9mm conversion, but the one I'm using for 223 works well.
Rating: (4 of 5 Stars!)
Dan ***
30 Dec 2023
Works very well. Easier to setup than the old cards. No more raining bullets.
Rating: (5 of 5 Stars!)
Gary ***
27 Dec 2023
I accidentally found another reason to get this nose guide.

I added more bullets to the bowl and accidentally, and unknowingly, bumped the 4 spacers that were in the old style nose guide. I hadn't realized that I had done so until bullets started dropping onto my workbench. At first I didn't see...
Rating: (5 of 5 Stars!)
David ***
28 Sep 2023
A must have for the Bulletfeeder. Makes calibrating for finicky bullets soooo much easier.
Rating: (5 of 5 Stars!)

Description:

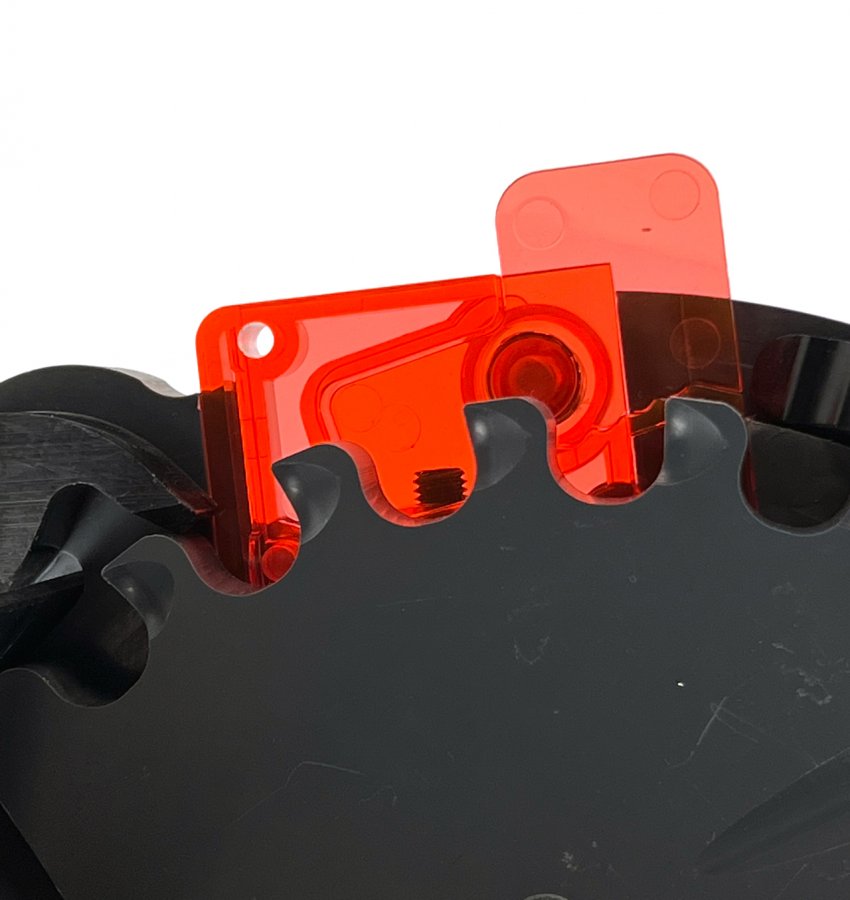

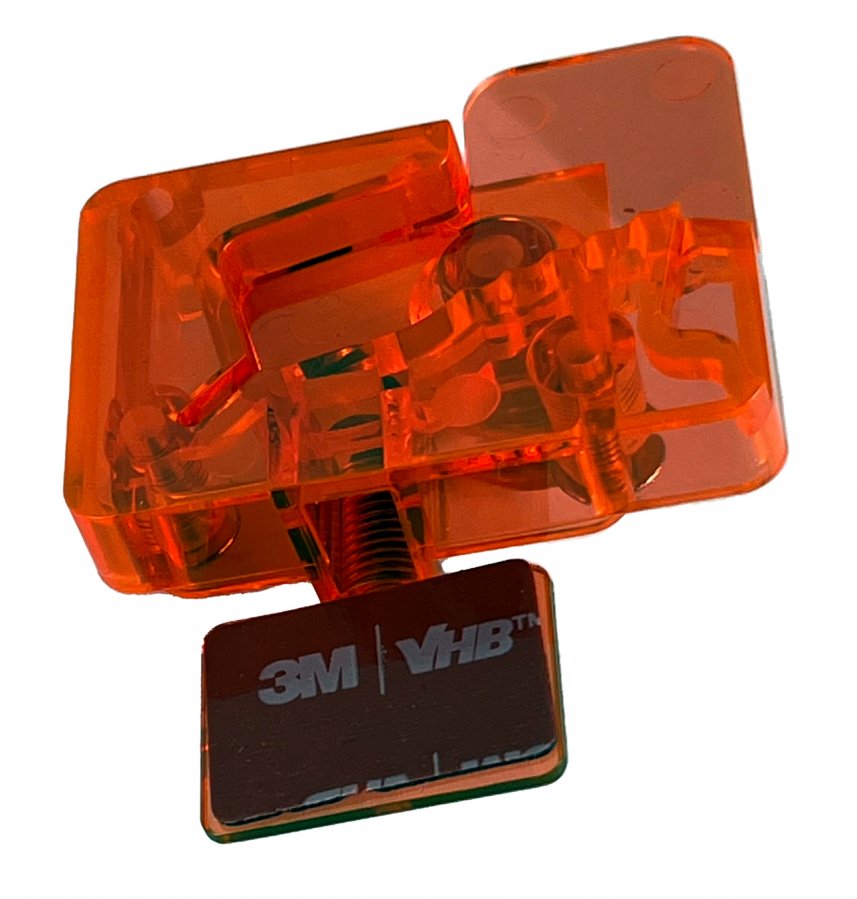

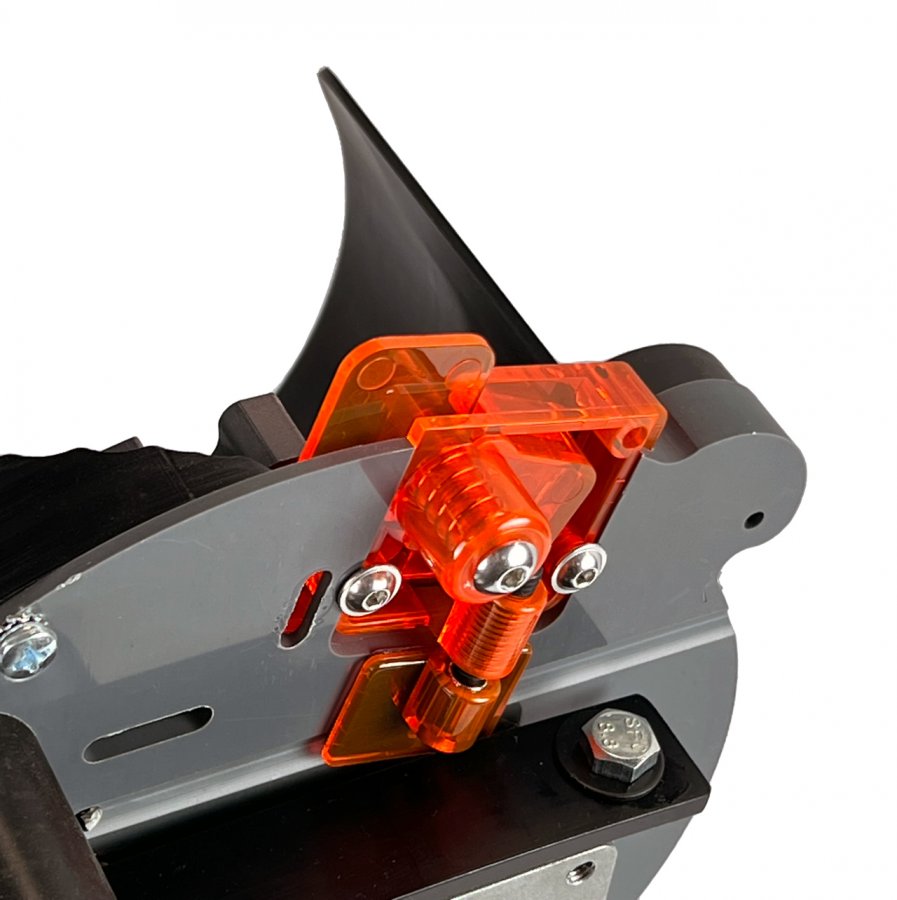

Save setup time and make caliber swap-overs easier than ever, with the Mr.Bullet Feeder Pre-Set Nose-Guide!

Those familiar with using the Mr. Bullet Feeder by DAA Gen 1/2 , will know how critical it is to adjust the Nose-Guide piece precisely correctly for the bullet caliber and profile you are collating. Positioning the Nose-Guide at precisely the correct depth under the collator bullet plate, and setting the depth of the Nose-Guide pocket just right, are key to collating with 100% reliability and to feeling all bullets base down as required.

If you often switch between bullet types or calibers, it can be time consuming to have to readjust that nose guide each time.

Well – no more!

The Mr.Bulletfeeder Pre-Set Nose-Guide allows you to micro-adjustment the position of the Nose Guide and quickly achieve the perfect setting for your bullet type and caliber. And no more need for the loose Nose-Guide Spacers either, which so often got lost between caliber change overs. Now the depth of the pocket is adjusted with just a turn of a screw.

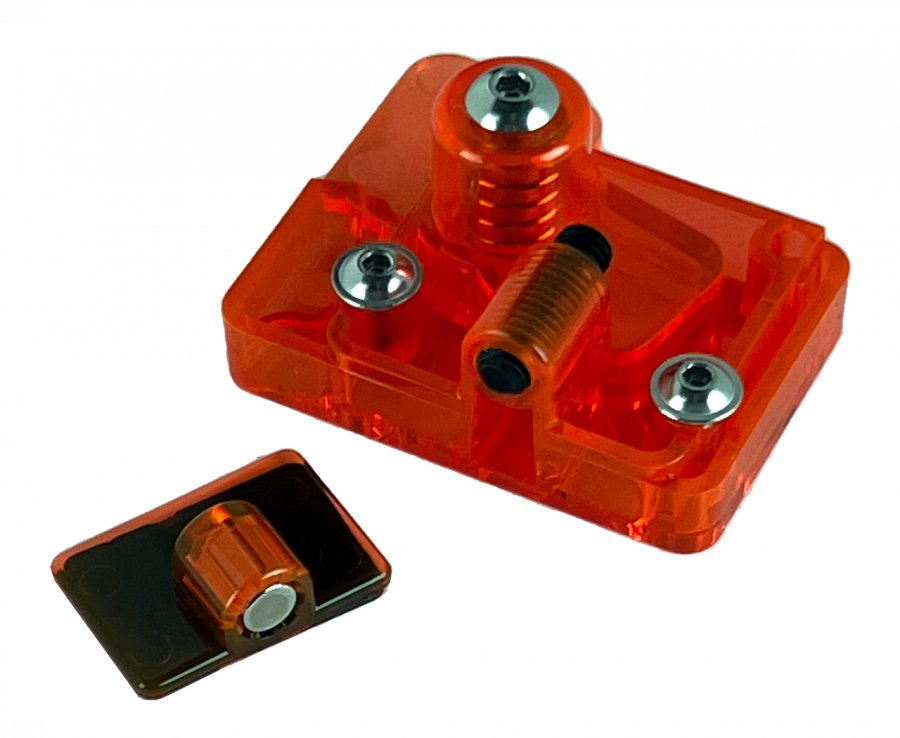

And better still! If you have multiple Pre-Set Nose-Guides, you can remove each one pre-set for a particular bullet – and drop it back in next time you need it! The part snaps into place against the magnetic stop-position piece (included) and you are perfectly setup and ready to load. This enables you to change bullet types in seconds, not minutes.

The bright colored orange material is perfect for writing on with a black Sharpie, to mark the bullet type it is pre-set for.

Please note:

This Pre-Set Nose-Guide is a drop on fit to all the Mr.BF units produced from 2018 and later (the units which have the hanger that clamps onto the motor gear box). Earlier models – the ones which had the round aluminum rods and round Delrin puck hangers – will require some DIY fitting. You can still use this new part – but you will need to slightly widen the slot for the Nose-Guide in your Collator base before use, and modify the shape of the magnet holder piece to fit next to the round mounting rod on the base plate.

Will not fit the MBF Pro.

Watch the tutorial video for installation instructions.
