DAA PRIMER-PRO Collator

Double-Alpha Academy
Configure
Primer Size
$199.95
$5.00 Reward points
(90)
 Item in Stock | Usually dispatched within 24 hours

Latest reviews

Tim ***
Friday 06 October, 2023
After some smaler adjustments the machine is running great with Fiocchi SPP.
Easy to keep up with a automated Mark7, would be capable to keep up with two.
To use other primers I need to adjust a little, therefore I use it only for my pistol ammo with one brand of Primer.
Rating: (4 of 5 Stars!)
Keith ***
Tuesday 14 March, 2023
The machine did not work properly at first. I contacted them about it and they gave me instructions on what to do if it did not work right. They were spot on. Machine works fantastic and great customer service !!! Worth the money for the time saving for doing large runs of ammo reloading.
Rating: (4 of 5 Stars!)
Corran ***
Wednesday 22 February, 2023
Perfect service as usual from Double Alpha.
Fast delivery times despite the distance and great customer service.
One of the best online shops to deal with.
Rating: (5 of 5 Stars!)
frank ***
Thursday 10 March, 2022
I have loaded about 1500 CCI SPP so far and it is working well. It took a little tweaking, watching a few videos and learning how it functions, but worth the effort. If you are reloading large quantities of ammo the primer-pro is a good investment, unless you like picking up primers one at a time...
Rating: (4 of 5 Stars!)
james ***
Saturday 05 March, 2022
I purchased this after being so impressed with the Mr Bullet product that I run on four presses. To make this unit reliable I had to do everything the others are saying. Shimming the plate to the hopper and silicone wipe on all parts. I dislike the primer tube angle but that is more about my...
Rating: (3 of 5 Stars!)
Michael ***
Wednesday 09 February, 2022
Awesome--with CCI primers. I love this thing, but had a lot of frustration when I first got it. At least the model that I received does not like certain primers (winchester, remington) and does not work well with them at all. I found that when using these ones brands, it is much faster to go by...
Rating: (3 of 5 Stars!)
Important Note
PRIMER-PRO NOTE
Some types of primers are tacky/sticky. These may not slide well through the slots in the Primer Pro Disk or down the Exit Ramp. This can lead to a slow output rates and/or poor exit ramp/hole performance. One simple solution to this issue is to apply a little silicon to the primers before loading them into the Primer Pro, as shown  here.

Another effective solution is to periodically clean/lube the Primer Pro plastic parts using a plastic cleaner/Polish or dry lube, such as Pledge, Cockpit spray cleaner or the likes. As shown  here.

With one or the other solution applied, all types of Small Primers can successfully be used.

The Primer-Pro is available for small primers only!

Description:

US PATENT 10,718,599

--------

The PRIMER-PRO by Double-Alpha is a unique new approach to handling primers, and the solution reloaders have been waiting for!

As any reloader knows well, manually filling primer tubes can be the most time-consuming and aggravating step in the whole reloading process, and few good automated solutions exist.

Until now!

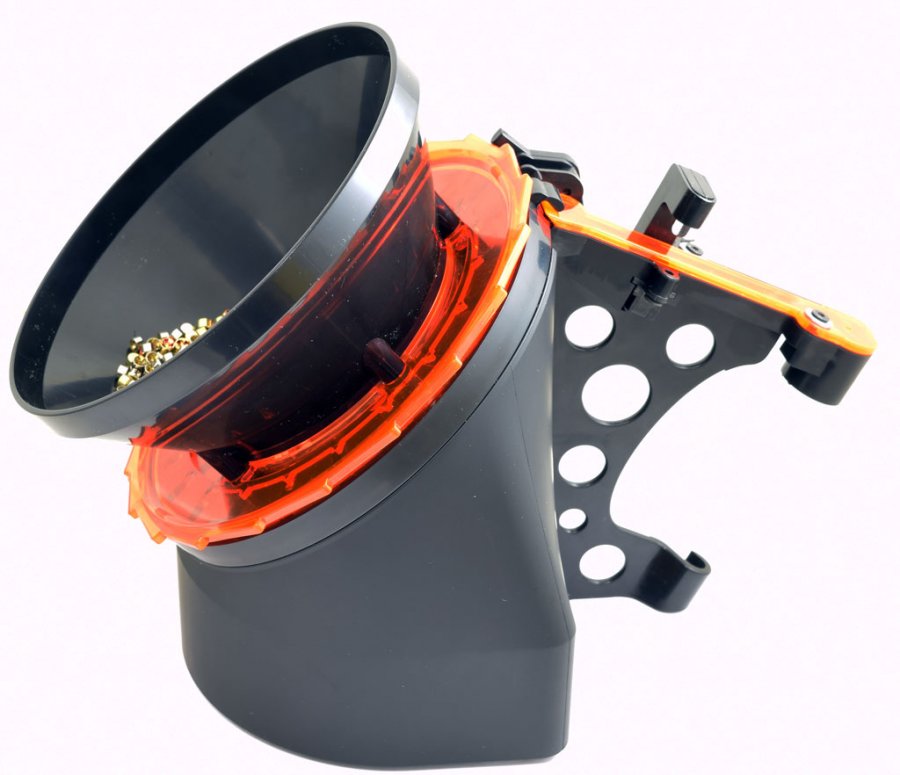

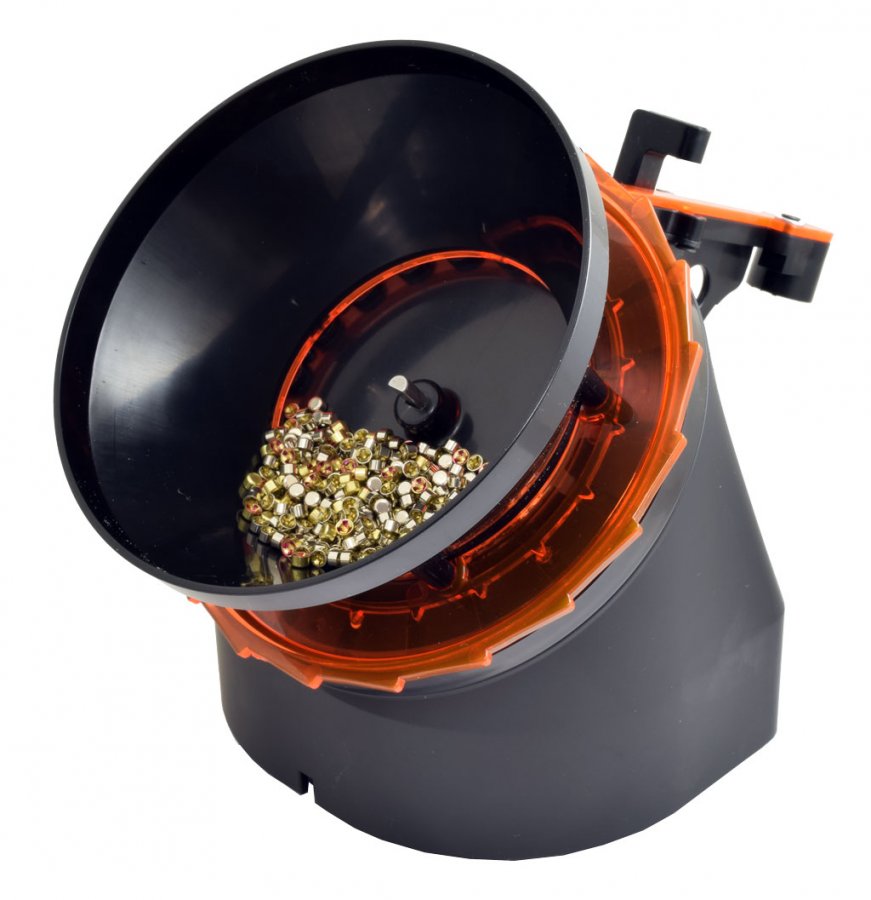

The PRIMER-PRO by Double-Alpha is an innovative patent-pending design which departs from the traditional vibratory bowl solution used by all other automated primer tube machines. The PRIMER-PRO uses a collator type solution where the primers are allowed to exit the bowl through 20 precisely formed channels, ONLY if they are orientated in the correct direction (Anvil side up). If they are Anvil down, they will not pass through the channel, and rather slide back into the bowl as their channel reaches the top of the rotation, to enter again later, correctly oriented.

This rejection-type design makes it practically impossible for a primer to enter the output channel if incorrectly orientated, making this device extremely reliable. During development, we ran many successful tests in which 100 tubes were filled (10,000 primers fed) without a single up-side-down primer!

As the primers slide down the covered output-chute, they pass through an optical sensor which counts them and stops the collator once 100 primers have been counted into the primer-tube. The electronic processor board also monitors the sensor and is programed to stop the collator if, for whatever reason, primers hang-up on the exit hole and stack up along the ramp. The collator will be stopped before the primers stack all the way up and jam the collator. In such a case, the LED will flash quickly to indicate there is a problem. Once cleared, pressing the start button again will allow the collator to run and the count will continue from where it was stopped. Or alternatively, a long press on the button will start the count a new.

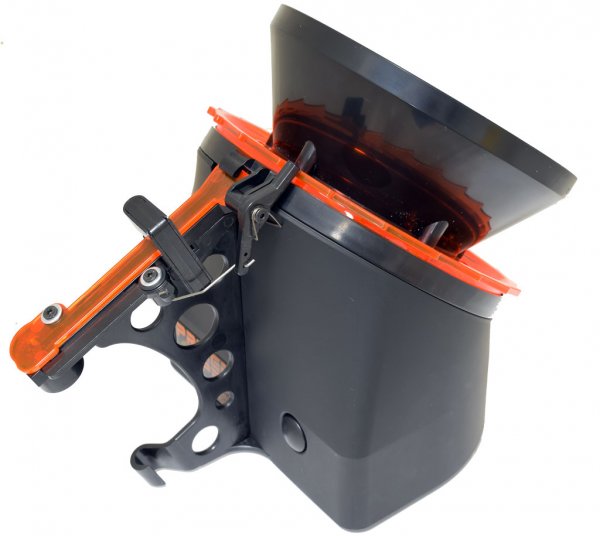

One of the most innovative design solutions of the PRIMER-PRO is the Output Actuator Arm, which is activated by a lever system off the Timing Disk at the bottom of the Collator Assembly. This Output Actuator Arm slides the primers from the bottom of the ramp slide, moving them over to above the output hole, holding them there for a split second to ensure they are static, horizontal and stable, and then retracting to allow the primer to fall cleanly down into the awaiting primer tube. This dynamic solution for the exit hole greatly reduces the chance of primers hanging up while exiting into the tube, a problem common with other automated primer fillers.

The PRIMER-PRO is currently available only for Smaller Primers, and handles Small-Rifle or Small-Pistol Primers equally well. A Large primer version may be offered in the future.

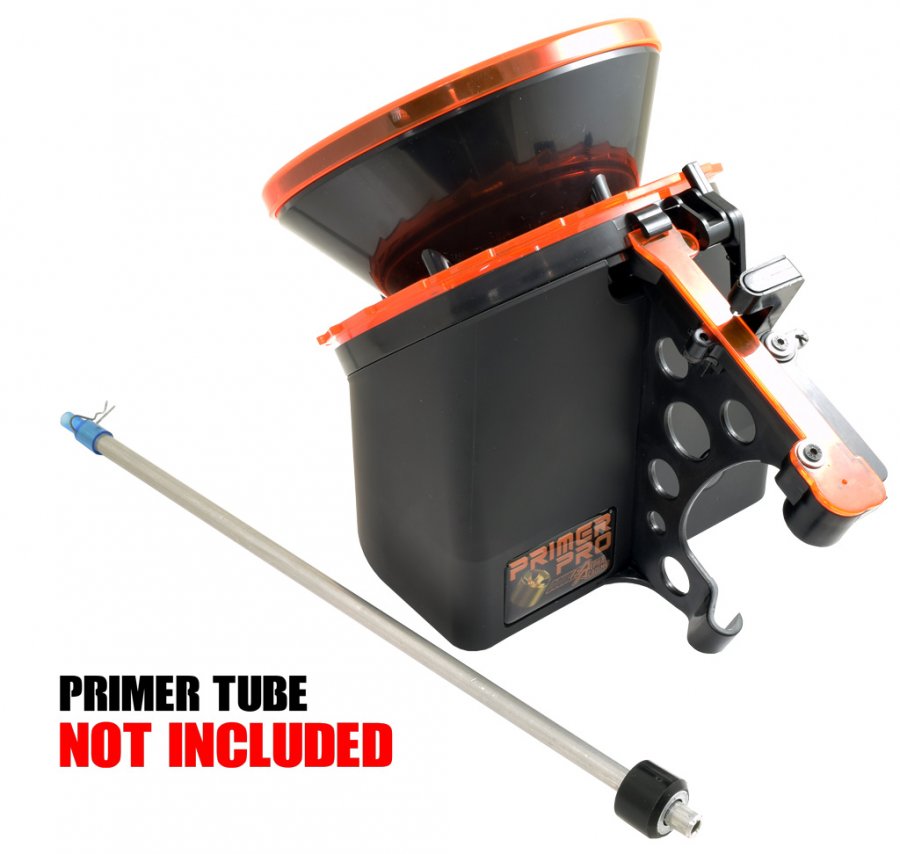

One Magnetic Collar for a Dillon Primer Tube is included with the unit. A PRIMER TUBE IS NOT INCLUDED! Since the PRIMER-PRO can refill a single Primer Tube faster than you can use the previous 100 primers in any reloading press, only one tube is strictly necessary.

However additional Magnetic Collars can be purchased separately, for those who prefer to fill multiple tubes before starting their reloading session.

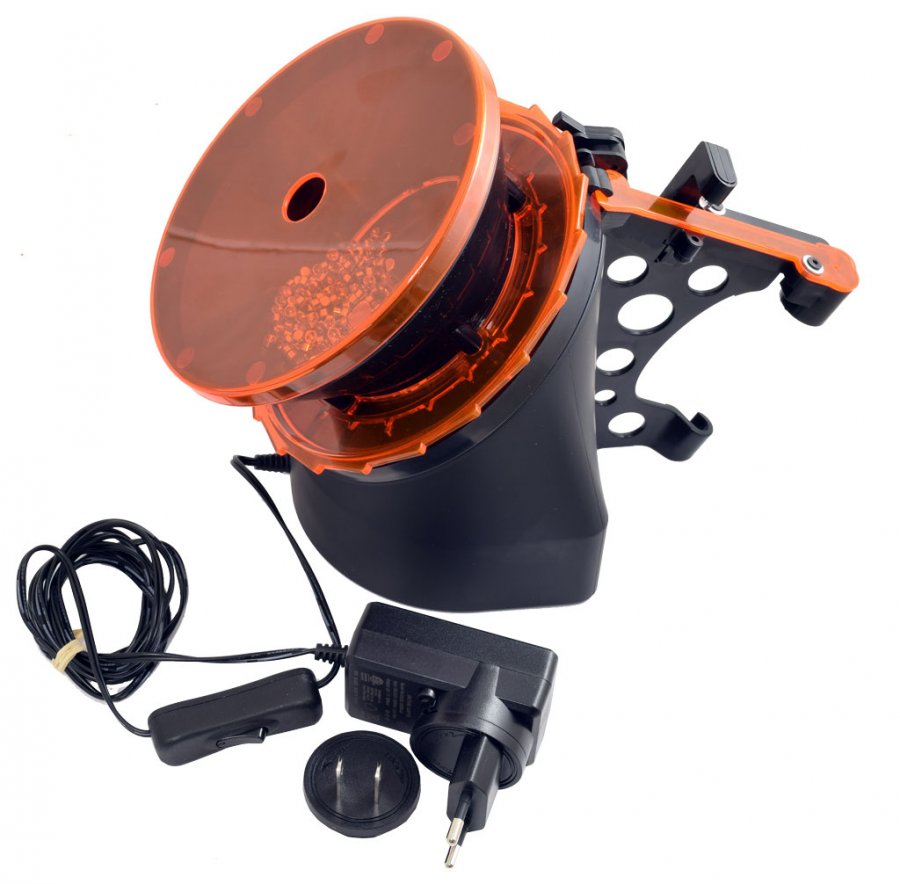

The unit is powder by a 12v DC power supply (dual voltage, 110-230), which ships including a suitable European and US prong set (included). The power cord is 2 meters (6ft) long, and includes an ON/OFF switch in the cable.

NOTE: Primer tube not included.

Primer-Pro Manual: Download-English

Primer Pro - Troubleshooting

Primers sliding too slow down the exit ramp on the Primer Pro

The cause: The cause is increased friction between the primer and the ramp due to some kind of oil or lube that remains on some types of...
