DAA Auto Case Sorter (ACS)- Mounting Kit Only

We offer two Mounting Kits for the Auto Case Sorter (ACS) - compatible with Dillon or Mark 7 Apex 10 as an additional kit.

The Auto Case Sorter - Complete with Mounting Kit comes with either of the two mounting kits as standard.

Dillon Mounting Kit

This mounting kit for the DAA Auto Case Sorter includes all the parts necessary to mount your Auto Case Sorter onto a Dillon press, whether it is a 650/750, a 1050, or an 1100 model.

Each of these models requires different lengths of case-feeder tubes, so the kit includes a mini hacksaw to allow you to cut the lower (longer) tube to the correct length for your press.

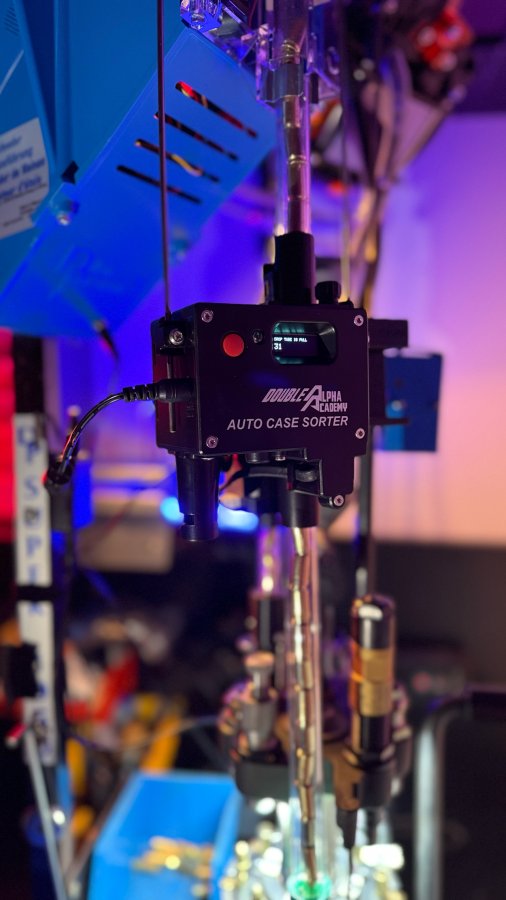

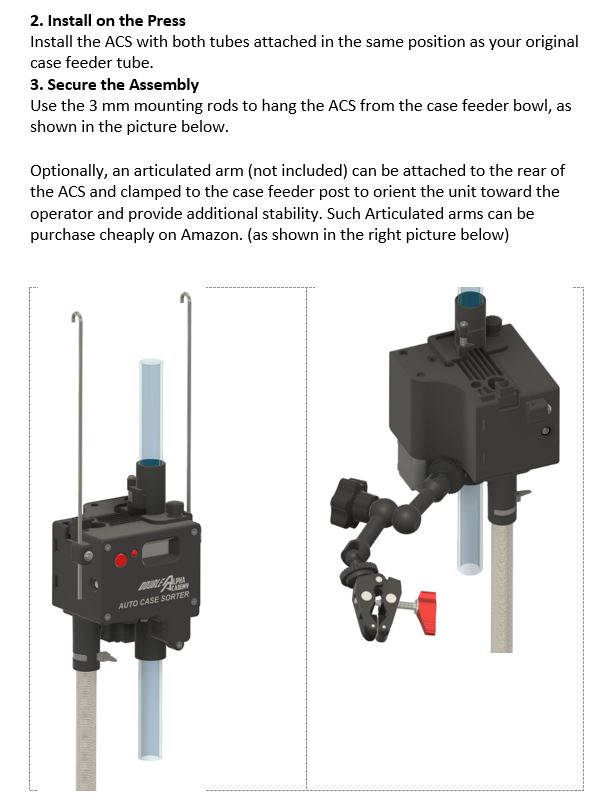

This kit includes two 3 mm steel rods to hang and stabilize the Auto Case Sorter (ACS) beneath your case feeder. If you wish to orient the ACS at different angles, you can also use an articulated support arm (not included), which can be attached to the back of the ACS where a dedicated threaded insert is provided. These can be purchased inexpensively from Amazon or other suppliers of camera articulating mounts.

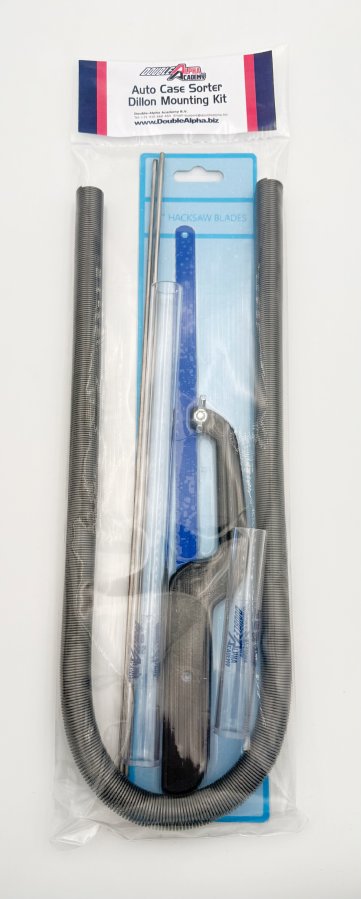

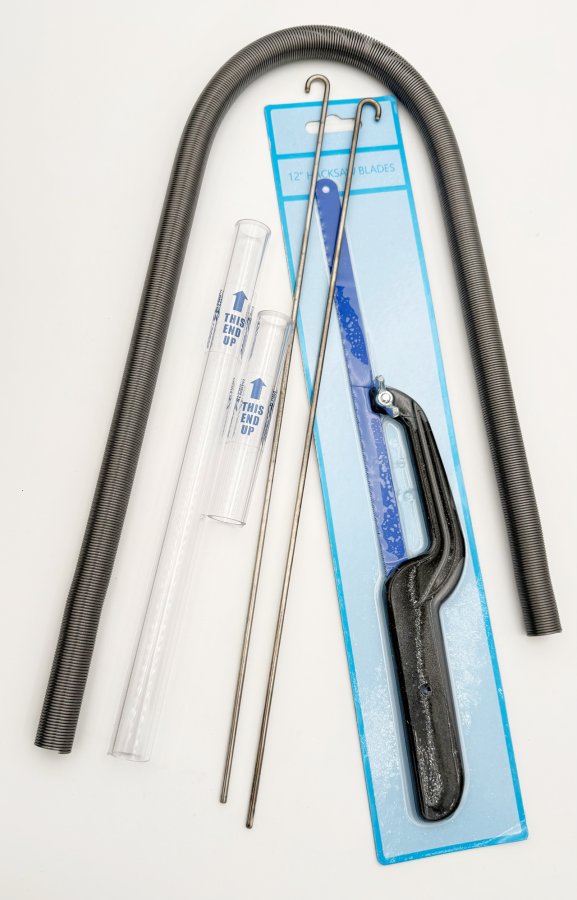

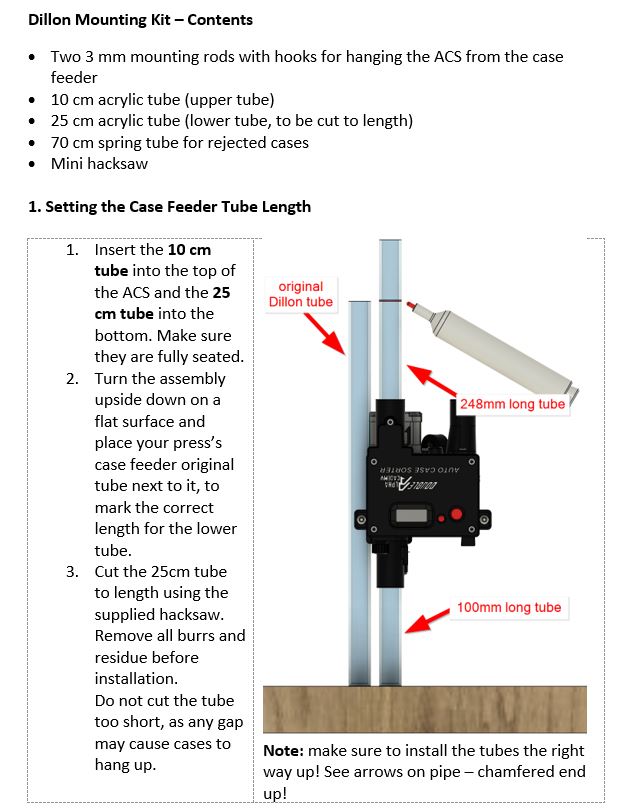

Dillon Mounting Kit – Contents

• Two 3 mm mounting rods with hooks for hanging the ACS from the case feeder
• 10 cm acrylic tube (upper tube)
• 25 cm acrylic tube (lower tube, to be cut to length)

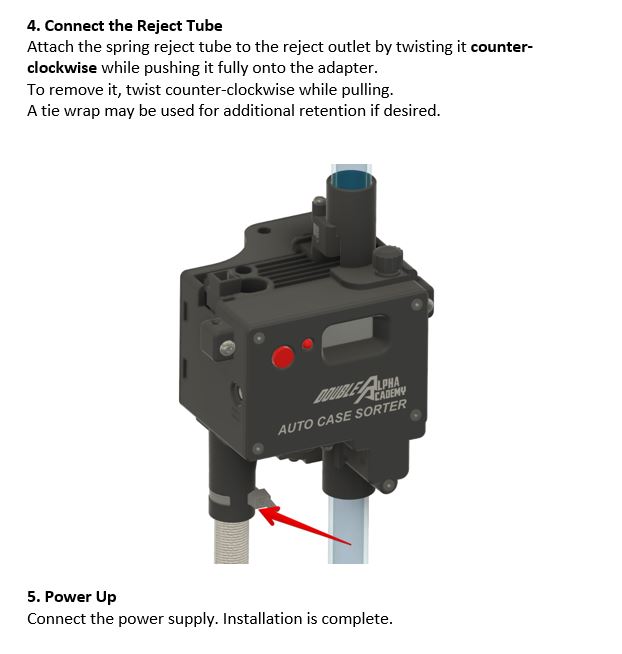

• 70 cm spring tube for rejected cases
• Mini hacksaw

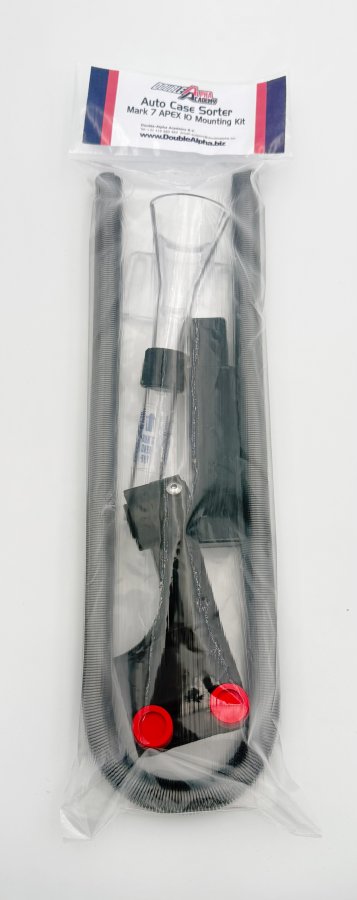

Mark 7 Apex 10 Mounting Kit

This mounting kit for the DAA Auto Case Sorter (ACS) includes all the parts necessary to mount your Auto Case Sorter onto a Mark 7 Apex 10 press.

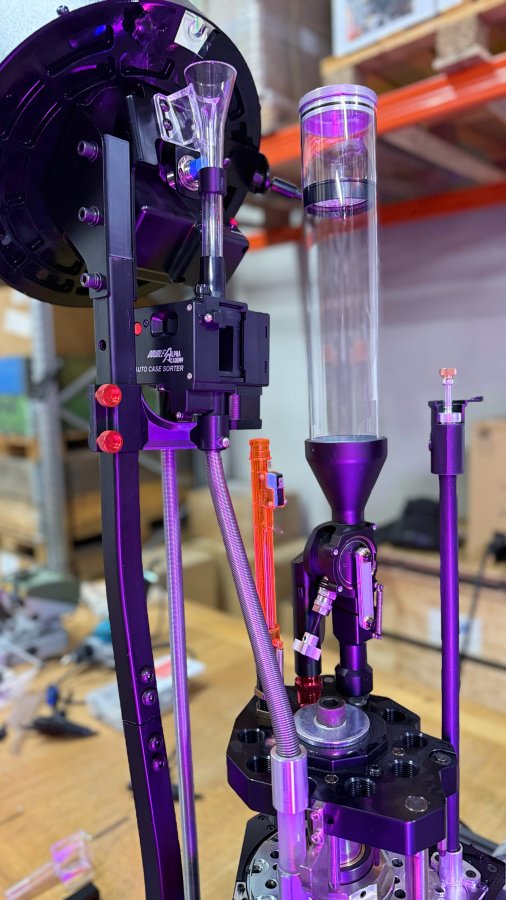

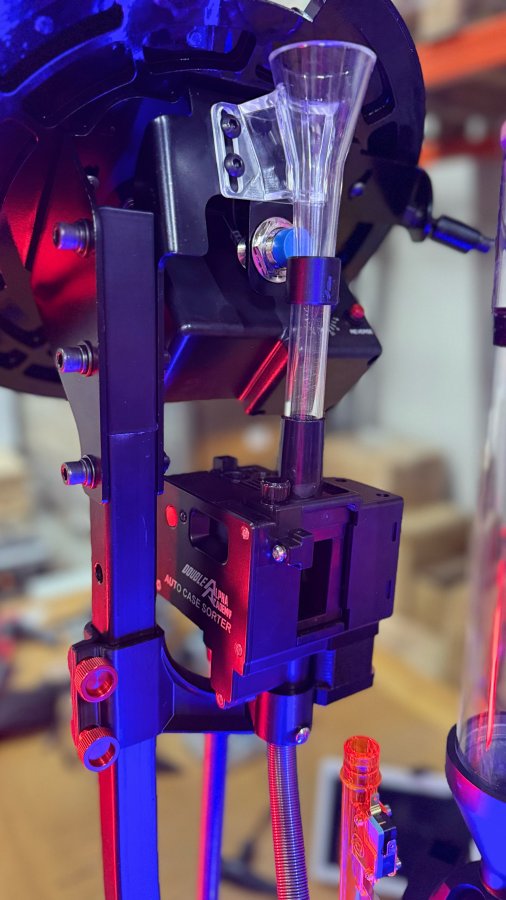

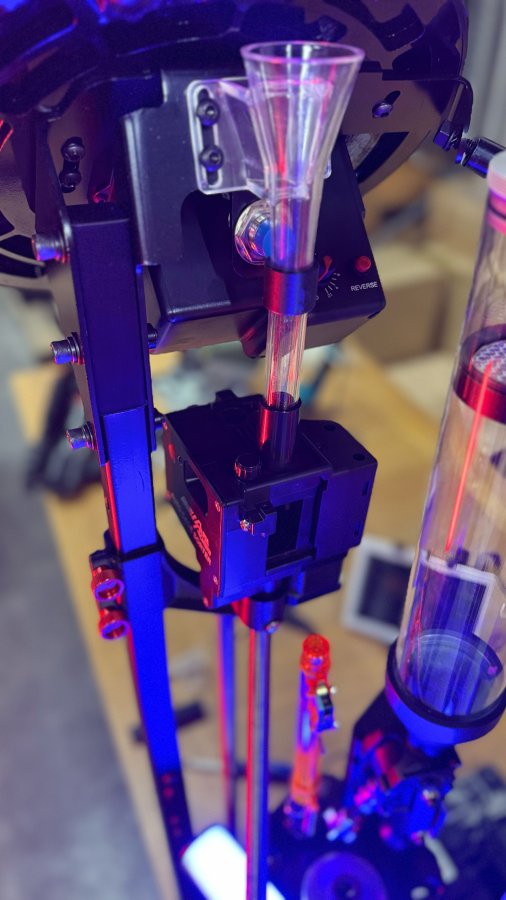

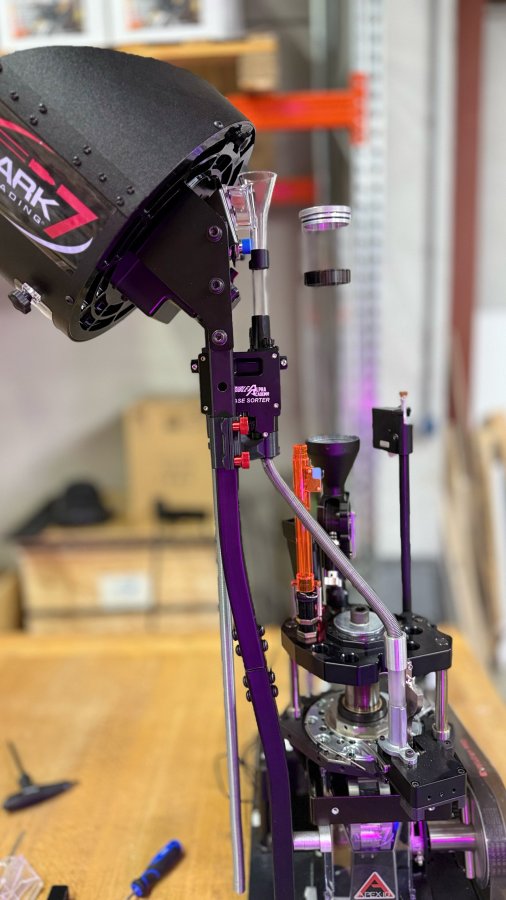

The Auto Case Sorter is mounted beneath the case feeder and requires the case feeder to be raised by 10 cm (4 inches), as maintaining a gradual angle for the feeding spring is important. An extension for the case-feeder support pole is included.

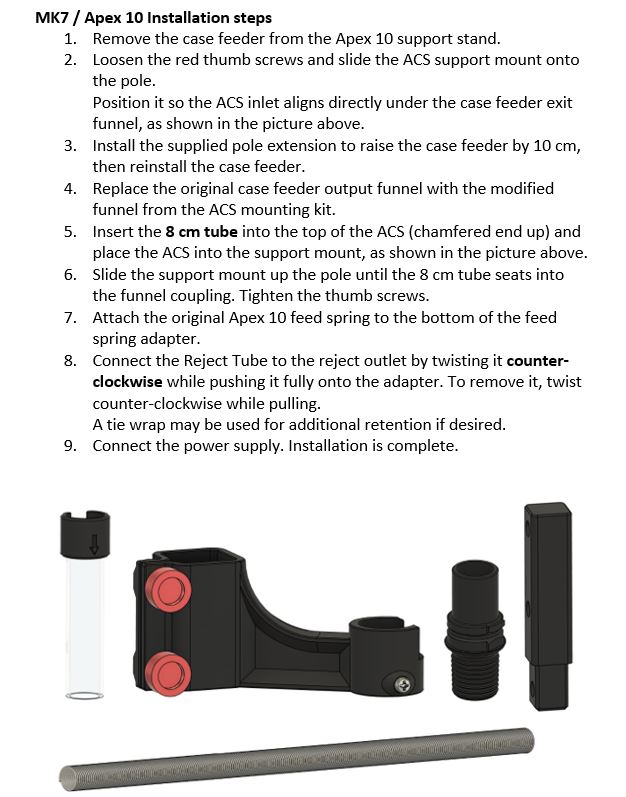

Full step-by-step instructions for mounting the ACS can be found in the manual and are also shown in the pictures here.

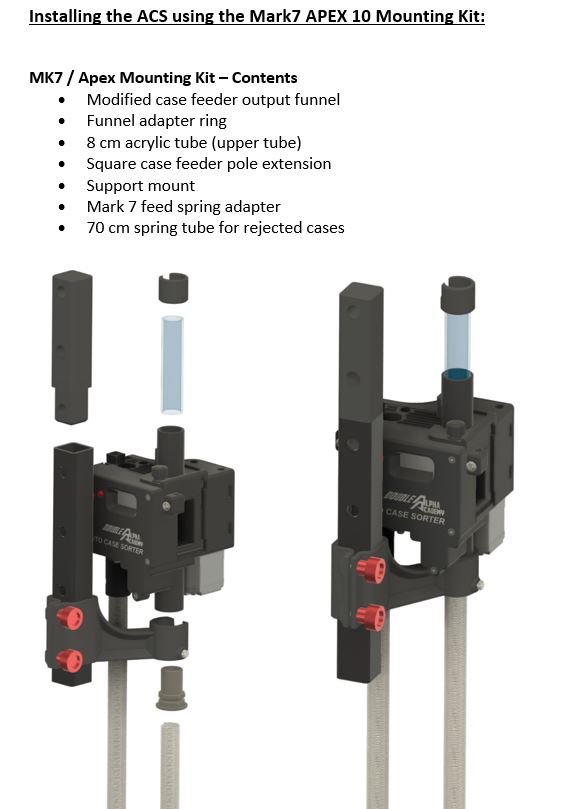

MK7 / Apex Mounting Kit – Contents

• Modified case-feeder output funnel
• Funnel adapter ring
• 8 cm acrylic tube (upper tube)
• Square case-feeder pole extension
• Support mount
• Mark 7 feed spring adapter
• 70 cm spring tube for rejected cases
